The off-grid solar power system packages detailed below are complete, and can be shipped quickly to your home. Call us with details on how you want to mount your solar panels and we'll recommend a high quality racking system to meet your needs.
Wholesale Solar's technicians design home power systems for both off the grid and grid-tied systems for all areas of the country and at all price levels. The systems on this page are all stand-alone systems, capable of producing electricity from solar energy and storing it for use when the sun is not shining.
Our design team can also customize a complete system unique to your specific application. If you do not find what you need on this page, contact us .
For a basic cost estimate, pull one of your current electric bills and check out our Size Your System for Off-Grid page first.
Wholesale Solar has pre-designed off-grid home solar packages with FGET panels and batteries.
| Available load | 6 kw | ||||
| Equipment | QTY | Load(W) | Time(h) | Power(WH) | |
| LED | 10 | 18 | 5 | 900 | |
| Printer | 1 | 150 | 1 | 150 |
|
| Computer | 3 | 100 | 5 | 1500 | |
| TV55' | 1 | 250 | 6 | 1500 | |
| Microwave oven | 1 | 2000 | 0.5 | 1000 | |
| Pump | 1 | 400 | 1 | 400 | |
| 180L Fridge | 1 | 50 | 24 | 1200 | |
| Washer | 1 | 300 | 1.5 | 450 | |
| 1P Air-condition | 2 | 800 | 10 | 16000 | |
| Total | 23100 | ||||
| Solar Panel | 24 Pieces |
Type: Polycrystalline Silicon PV Module Max Power: 250W Vmp: 30.5V; Imp: 8.33A Size: 1640*990*35 mm Weight: 22kg/pcs 25 years power output guarantee |
Remark: This system configuration is for reference. It can be ADJUSTED based on actual condition and requirement. All parts have been tested and proven in actual operation with enough reliability and stability. It’s suggested to source whole system as a pack from us to guarantee the system compatibility. |
||
| Controller | 1 Set |
PV Charging Controller 192V 40A; PWM high-efficiency charging controller, intelligent control; Temperature compensation, various protections. |
|||
| Inverter | 1 Set |
DC192V input, AC220V/110V 1-phase output 50/60Hz; Rated Output Capacity: 8000W Pure sine-wave output, off-grid type Protections: Short circuit, overload, surge current, over temperature, over/under voltage, lightning, reverse polarity. |
|||
| Battery | 16 Pieces |
12V/150AH per piece AGM valve-regulated lead-acid battery,deep cycle fully sealed, free maintenance type Service Life: 5~6 years |
|||
| Solar Panel Rack | 1 Set | Roof type mounting rack including complete fittings, aluminum alloy (Rack can be customized per request) |
Volume: 3.8 CBM
Weight: 2150 kg
|
||
| Cables | 1 Set | International standard, with specification suitable for solar system, BV1*4 series and 1*10 series | |||
Solar System characteristic:
1. All Systems have LCD digital display which allows you to see the system working, (eg) Charge data, System voltage, Daily power consumption and temperature.
2. All type of BPS system both has AC and DC output.
3. All system have automatic switch , If mains power goes off the system will switch automatically over to battery power, When mains power resumes
the system will switch back automatically. The batteries will resume recharging automatically.
4. All inverters are Pure Sine Wave inverters. This allows the use of Air Conditioners and refrigerators without any problem.
5. Each component has a single chip detector. Assembled by the IPM or IGBT of Mitsubishi
This protects the system from Overloads, Low Voltage and Under Voltage (alarm) Over Heating, Short circuit, Reverse Polarity.
6. Your system can be updated very easily. Just by adding extra components your system will increase power capacity.
7. Battery optional, you can purchase from us or locally.
8. Simple to install, just follow installation instructions.
9. Our System offers Cutting Edge Technology, State of the Art Quality with Greater Functionality than our competitors, at Competitive prices.
|
Case Studies |
>>View More>> |
|
|
|
|
 |
|
CRRC 5kw Project: CRRC Super Capacitor TestCapacity: 5kW Type of Module: FGET Multicrystalline 265Wp Date of Completion November 2017 Owner: CRRC Cooperation Ltd.
Installer: FGET |
30kw System Replace Owner: CRRC Cooperation Ltd.Project: CRRC Solar System replace Capacity: 30kW Type of Module: FGET Multicrystalline 265Wp Date of Completion November 2016
Installer: FGET |
Burkina Faso 5kw Project: Burkina Faso 5kw Capacity: 5kWType of Module: FGET Multicrystalline 250Wp Date of Completion: March 2017 Owner: Yacouba Zongo |
|
Packing & Delivery |
>>View More>> |
|
|
|
 |
 |
|

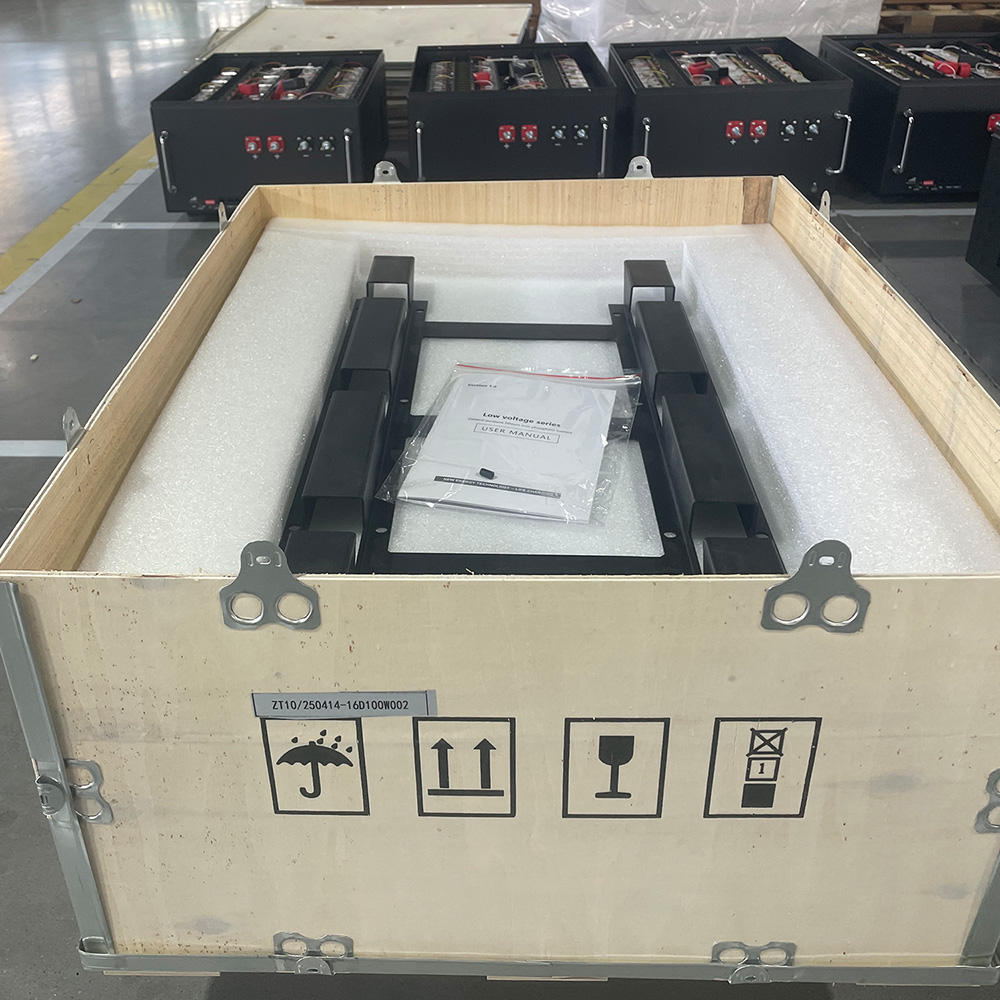

Carton Packing
|
