FGET deep-cycle Solar battery is designed to discharge between 40% and 80% of its capacity, and more than 800 cycle times for daily use .
Future Green 12V200AH Deep Cycle Lead Acid Solar Battery
Application:
|
|
Battery Use and Maintenance:
1) Please use constant-voltage charge.
2) In floating charge, the voltage is 2.23 to 2.27 per unit cell.
3) In cycle use, the voltage is 2.35 to 2.45 per unit cell, the max. Current is no more than 25%° C
4) Please do tighten the bolts to avoid sparkle and poor contact when the battery is in use.
5) Please do not use it near the heat source and open flame.
6) Please keep it at low temperature. Please change it while there is liquid leaking or damage.

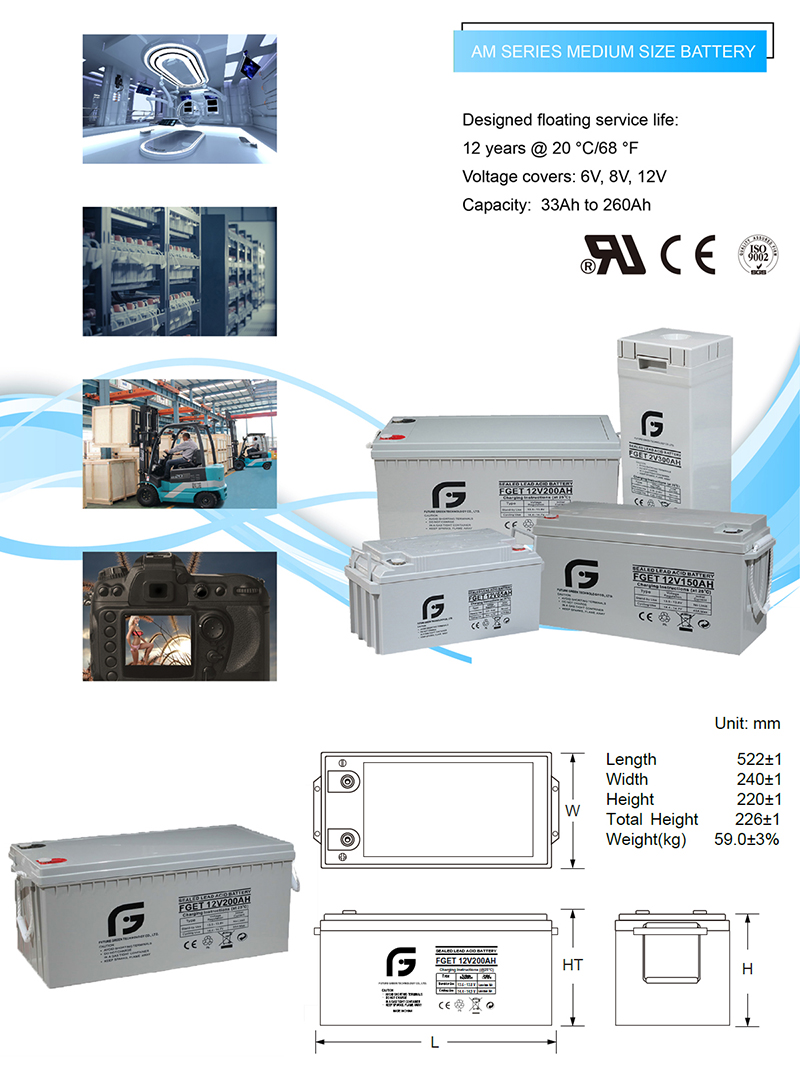

Battery Out Size:
Battery Parameters:
| Characteristics | |||
| Nominal Voltage | 12V | ||
| Nominal Capacity (10 hour rate) | 200Ah | ||
|
Capacity 25°C(77°F) |
10 hour rate (20A) | 200Ah | |
| 3 hour rate (50A) | 150Ah | ||
| 1 hour rate (110A) | 110Ah | ||
| Internal Resistance | Full Charged Battery 25°C(77°F) | ≤8mΩ | |
| Float Life | 25°C(77°F) Float charge at 13.8V | About 5 Years | |
|
Capacity affected by Temperature (10 hour ) |
40°C (104°F) | 102% | |
| 25°C (77°F) | 100% | ||
| 0°C (32°F) | 85% | ||
| -15°C (5°F) | 65% | ||
|
Self-Discharge 25°C(77°F) |
Capacity after 3 month storage | 90% | |
| Capacity after 6 month storage | 80% | ||
| Capacity after 12 month storage | 62% | ||
| Charge (Constant Voltage) 25°C(77°F) | Cycle |
Initial Charging Current Less than 60A Voltage 14.6-15.0V |
|
| Float | Voltage 13.5-13. | ||
|
Work Shop |
||
|
 |
 |
|
Main Workshop
|
Battery Charging
|
Produce line
|
|
Packing & Delivery |
||
|
|
 |
 |
|
Carton Packing
|
Batteries Layer
|
Fumigation Free Tray
|
|
Our Certification |
||
 |
 |
 |
|
Company Certificate
|
ISO Certificate
|
MSDS & Transport
|
Our Services:
Samples and OEM, Warranty and After-Sale Service:
Sample can be provided for quality testing
