* Solar Cell: Made of Grade A PERC 9BB monocrystalline solar cells.
* Premium EFTE Film – This film features superior light transmission and weather resistant performance.
* Shade tolerant.
* Tabletop: Durable fiberglass tabletop with better heat dissipation and heat resistant PET/TPT tabletop.
* Ultra-thin: only 3mm thick.

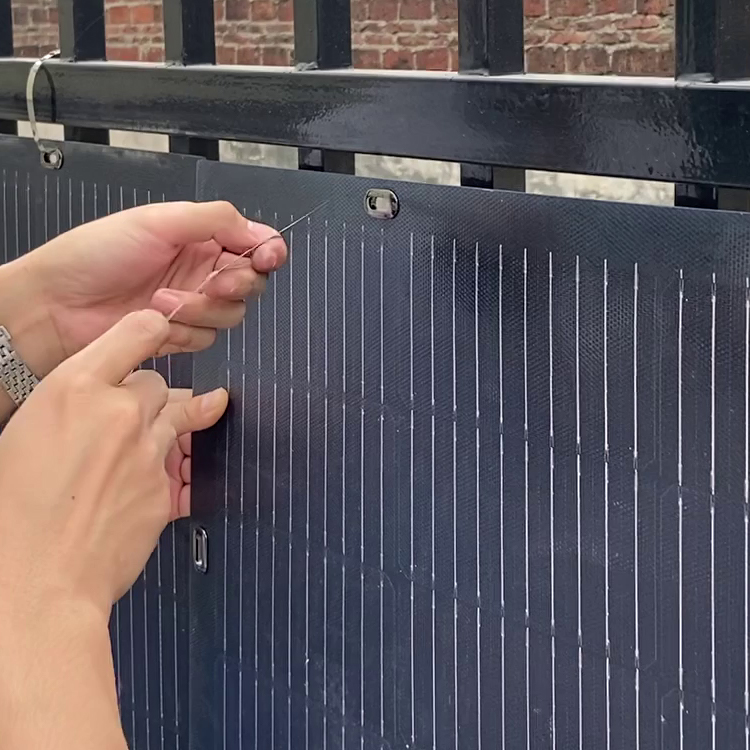

* Installation: can be fixed with adhesive, grommets, zip ties or Velcro.
* Net Weight:2.5 kg.
* Back sheet: black fiberglass
* J-Box: IP 68 rated with 90cm/3ft cables. * WiFi Real time monitoring. * High efficiency up to 99% * Come with built-in WIFI module, so that it can communicate with router directly * Waterproof IP65，10 years warranty
Balcony Black Mono 18V 800W Flexible Solar Panel Cost-Efficient High Efficiency
|
Electrical Characteristics @ STC |
Flexible-FB120 |
|
|
Peak Power Watts-PMAX |
Wp* |
120 |
|
Power Output Tolerance-PMAX |
W |
0/+5 |
|
Maximum Power Voltage-VMPP |
V |
19.8 |
|
Maximum Power Current-IMPP |
A |
6.06 |
|
Open Circuit Voltage-VOC |
V |
24.51 |
|
Short Circuit Current-ISC |
A |
6.41 |
|
Module Efficiency ηm |
% |
20.5 |
|
Maximum System Voltage |
V |
100 |
|
Temperature Coefficient of Pmax |
%/°C |
-0.34 |
|
Temperature Coefficient of Voc % |
/°C |
-0.27 |
|
Temperature Coefficient of Isc |
%/°C |
0.04 |
|
Mechanical Characteristics |
|
|
|
Cell Orientation |
36cells4*9 |
|
|
Dimensions |
900mm*800mm*3mm(L×W×H) |
|
|
Weight |
2.8±3%kg |
|
|
Sureface |
ETFE |
|
|
Color |
Full Black |
|
|
J-Box |
20A IP67 or IP68 rated |
|
|
Cables |
PV Cable 4.0mm² |
|
|
Connector |
28 QC4/TS4 |
|
|
Packaging |
|
|
Model BG800
System type On-Grid System
Micro-Inverter 600W Wifi
Solar Panel 120W mono x 6pcs
Solar Panel Size: 900*800*3mm
